Blue Cube (Made in the USA)

Blue Cube (Made in the USA)

Add To Cart


An STM32F427 Rev 3 Flight management unit (where the flight controller lives).
An STM32F100 I/O processor with pass through capabilities for failsafe (deals with the receiver and outputs ).

3 IMU's
1 Fixed 10 Axis IMU on the main Main board.

  •  MPU9250 (3-axis Accel, 3-axis Gyro, and 3-axis Magnetometer)

  • MS5611 (Barometer)

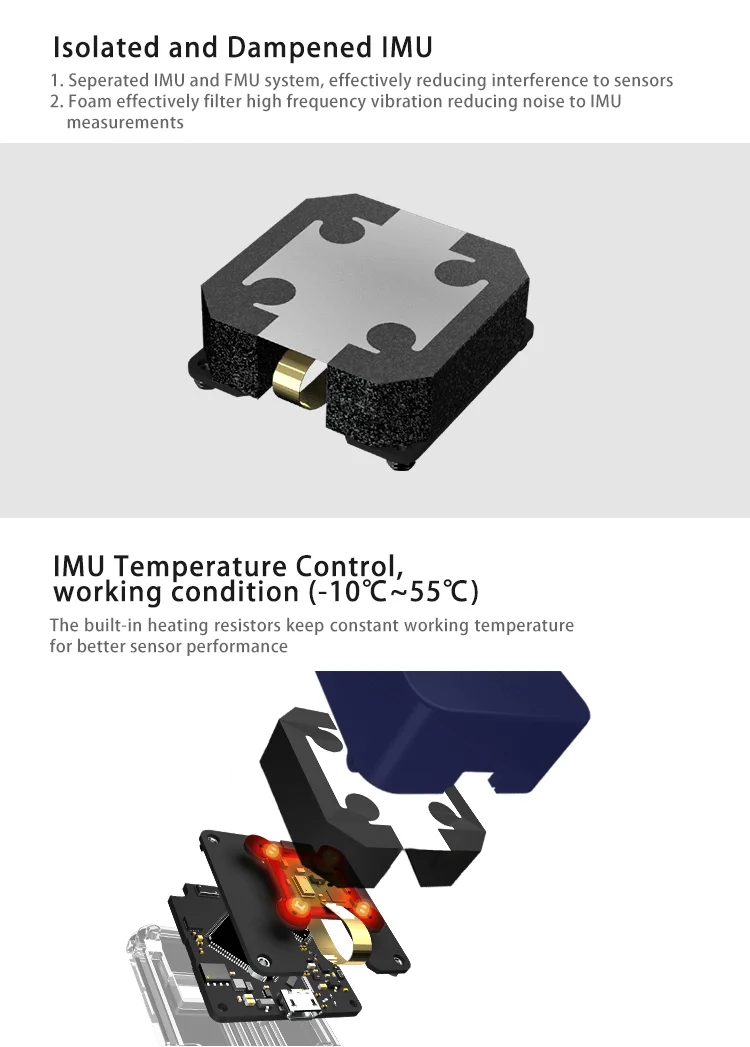

2 Vibration Isolated and heat controlled 9DOF IMU's and an isolated Baro.

  • MPU9250 (3-axis Accel, 3-axis Gyro, and 3-axis Magnetometer)

  • LSM303D (3-axis Accelerometer, 3-axis Magnetometer)

  • L3GD20 (3-axis Gyro)

  • MS5611 (Barometer)

In case you missed it.... 3 IMU's STANDARD.

All connections are via an 80 pin DF17 connector on the base.  The following connections are included.
2x CAN (pins reserved for a 3rd Can bus on next year’s model)
2x I2C
5x Serial
2x SWD debug ports
2x Power input voltage and current sense
1x Analog input (one of the power inputs can be used as analog if you need)
Buzzer raw pwm
Safety switch
8x I/O connected PWM out (opto drive capable 10mA each)
6x Aux FMU connected I/O (PWM or alternate function)
Servo rail I/O backup power (10.5v Max)
2x 5.4v power in pins.

All other pins are reserved DNC.
